DIY INSTRUCTIONS - ORBIT PANEL 15

DIY INSTRUCTIONS - ORBIT PANEL 15





 REQUIRED PARTS:

OPTIONAL PARTS:

REQUIRED TOOLS:

  • Pry Tool/Knife
  • Needle-nose Pliers
  • Phillips Screwdriver

INSTRUCTIONS

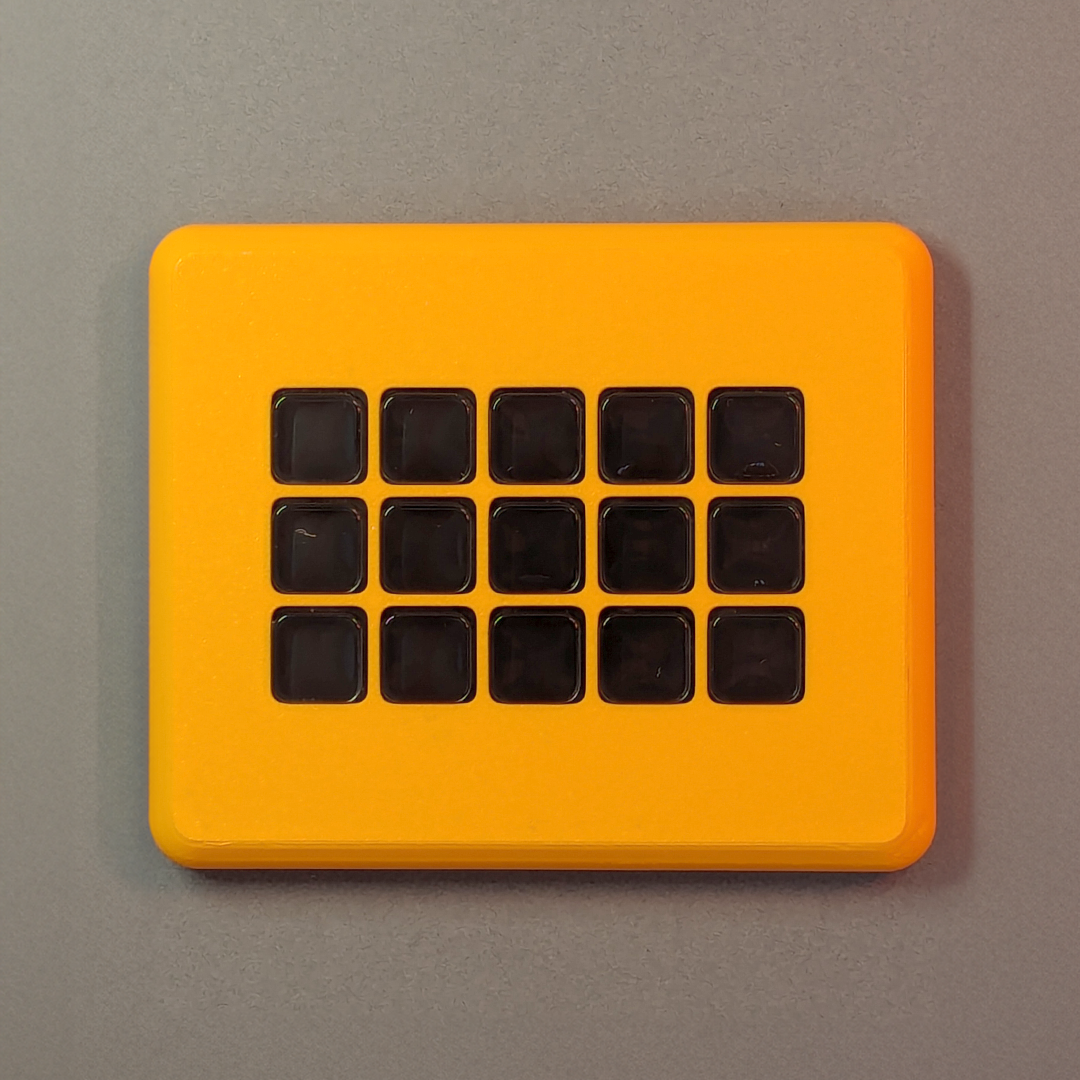

Print Enclosure

  • Download STL file
  • Print Cover flat on front face
  • Print Wall Plate on angle with back corner and edge of front plate
    This allows printing without any supports.
    You can also print the wall plate flat on its back, using supports for the overhanging plate. This may be easier for your printer to achieve, but will take more space, time, and filament.





Disassemble Stream Deck

  • Unplug USB cable from the rear.
    (If it was previously attached, if new it will not come attached)
  • Remove Front Cover.
    This cover is made to be removable. There are tabs holding it on. You can use a knife or pry tool if preferred, but you should be able to pull it straight off without the need for a tool.
  • Remove button module from rear of case.
    There is nothing holding it in, use pry tool or knife to remove.



Assemble Electronics

  • Attach Qty 4- 9mm long 2.5mm standoffs to top of POE Hat
  • Remove Qty 4- 4mm long 2.5mm standoffs from the bottom of the POE hat and replace them with 2.5mm screws. (It is helpful to remove then replace 1 or 2 at a time, rather than removing all 4 and having to line everything up again to put the screws in)
  • Use the 4mm standoffs you just removed to attach the Rasperry Pi Zero 2 W to the top of the POE Hat.

Assemble Orbit Panel

  • Line up the ports on the electronics assembly with ports in the Orbit Panel Wall Plate.
  • Slide the assembled Pi and Hat into Orit Panel Wall Plate.
  • Use Qty 3- 2.5mm screws to attach electronics assembly to Orbit Panel Wall Plate
  • Insert button module into Orbit Panel Wall Plate.
    It is not symmetrical. Make sure the USB-C port lines up with its hole in the wall plate, and buttons are centered.
  • Connect USB cable from USB C port to USB A port on back of Orbit Panel Wall Plate.
    (optional: using right angle adapter)

Flash Companion Satellite

Install In Wall

  • Connect POE network cable to RJ45 jack on back of Orbit Panel
  • Install Orbit Panel Wall Plate in wall box with Qty 4: #6 - 1" screws
  • Snap on Orbit Panel Cover
