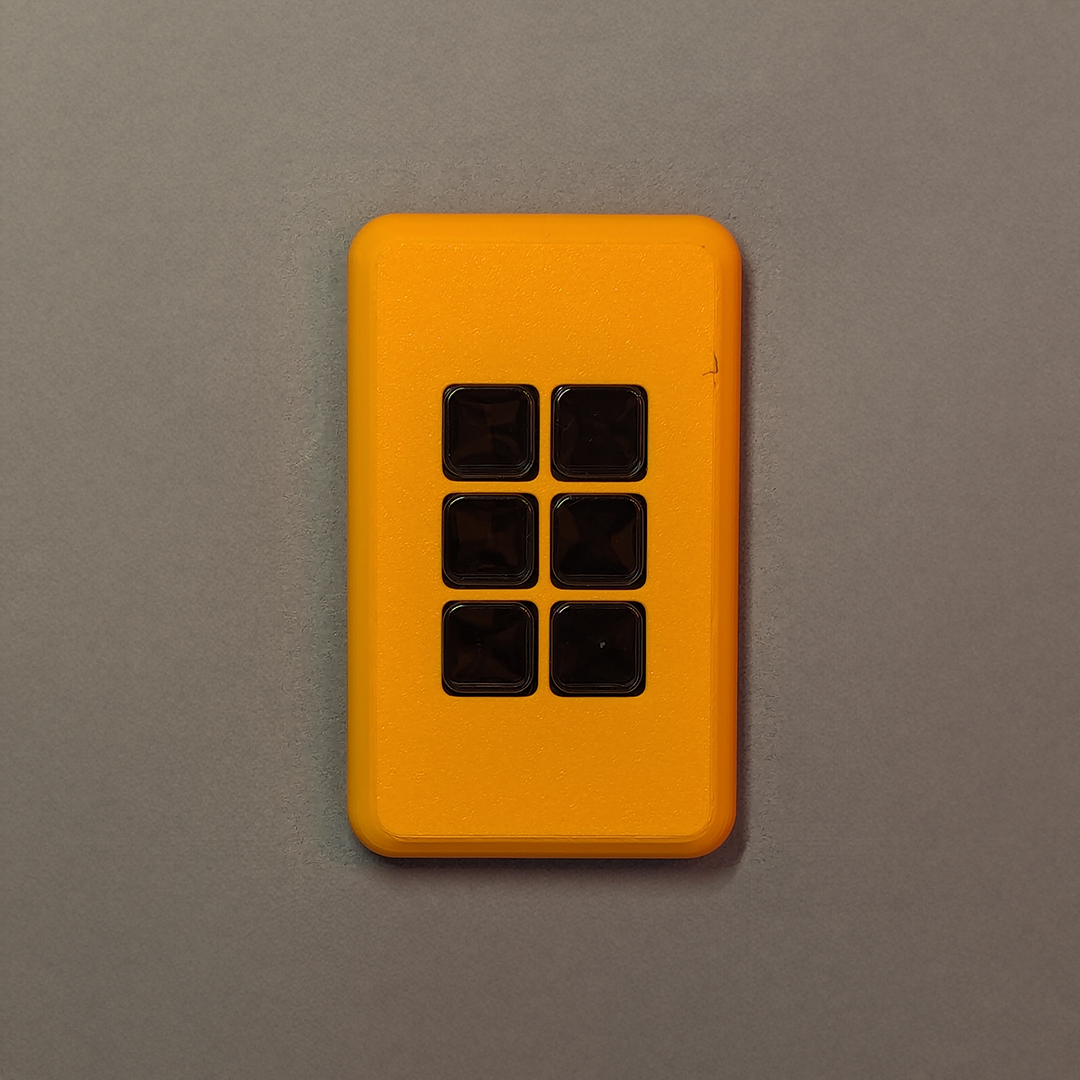

DIY INSTRUCTIONS - ORBIT PANEL MINI Version 2

May 5, 2026

REQUIRED PARTS:

-OR-

-OR-

Download STL file
Print Cover flat on front face
Print Wall Plate on angle with back corner and edge of front plate
This allows printing without any supports.

You can also print the wall plate flat on its back, using supports for the overhanging plate. This may be easier for your printer to achieve, but will take more space, time, and filament.

Attach Qty 4- 8mm long 2.5mm standoffs to top of POE Hat. (Do not use the standoffs included with the POE hat
Remove Qty 4- 4mm long 2.5mm standoffs from the bottom of the POE hat and replace them with 2.5mm screws. (It is helpful to remove then replace 1 or 2 at a time, rather than removing all 4 and having to line everything up again to put the screws in)
Use the 4mm standoffs you just removed to attach the Raspberry Pi Zero 2 W to the top of the POE Hat.

The Orbit Panel Mini does requires one of the following:

A Female USB-C to Male USB-A adapter to use with cable included with the Elgato Module
Modifying the cable included with the module to have a USB-A end instead of a USB-C end
Custom making your own custom JST to USB cable
Using a premade Orbit Link Mini Cable

Line up the ports on the electronics assembly with ports in the Orbit Panel Wall Plate.
Slide the assembled Pi and Hat into Orbit Panel Wall Plate.
Use Qty 4- 2.5mm screws to attach electronics assembly to Orbit Panel Wall Plate
Flip the Orbit Panel over and remove the screw visible through the opening for the Orbit Link Cable.
Feed JST connector side of the cable through opening, from rear of wall plate to front.
Connect the cable to the button module.
Insert button module into Orbit Panel Wall Plate.
Connect USB cable cable to USB port on back of Orbit Panel Wall Plate.
